Eachine Turbine QX70 review - Banggood

mlilasic
Dec 16, 2016
2 min read

New toy in the house: Eachine Turbine QX70 70mm micro quad. Easiest to describe it is Tiny Whoop (Inductrix) clone. This BNF format is for those who don't have time, don't have skill, just don't want to or can't build their own micro. Quad is configured in factory and should have optimal PID settings in CF (dump of original settings is in attachment). Great feature on this micro quad is ducted fans that should produce more thrust, and also to protect the propellers. Here is quick unboxing video with few pictures in the end. Packet arrived very quickly to Croatia from Banggood via Expedited Shipping Service (DHL), it took 8 days.

Build quality looks good, props move freely, they don't touch ducts. Grab your BNF version at BG http://goo.gl/qxOeTJ or frame kit http://goo.gl/oha7n0 For now: PROS:

modern F3 FC (CF onboard, can be flashed with BF for better acro style flying)
price
good FPV camera
plug type motor leads for easy solder less replacement
integrated receiver, 3 popular options (frsky, flysky, dsm2/dsmx) - you get everything you need for the start of yours indoor adventures
BNF kit - already built quad
extra set of props, battery and charger
props are protected

CONS:

FPV antenna is exposed so there is big chance for it to be damaged in crash
would be great if there was included one more battery and 2 spare motors like some other kits

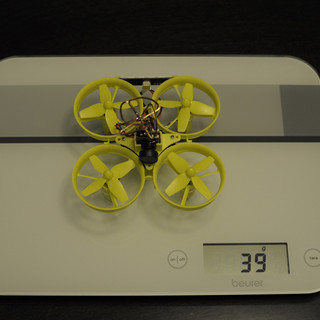

SPECS: Wheelbase: 70mm Fly Weight: 55g W/o battery: 39g Size: 98*98*75mm Flight controller: SP RACING F3_EVO_Brush Firmware version: Cleanflight 1.13.0 Motor: 8520 Coreless Motor Prop Size: 40mm 4-Blade Camera: 600TVL HD CMOS 1/4 inch Camera Video Output format: PAL / NTSC AV Wireless Transmitter: 5.8g 25mw 48ch Battery: 3.7V 600mah Lipo battery - 16g Flight time: 6 minutes ??? - that sounds too much, we will see... What do I get in box? 1 x QX70 Frame kit 4 x 8520 Coreless Motor 1 x F3_EVO_Brush Flight controller (receiver is integrated in FC) 1 x 5.8G VTX w/Camera and antenna 4 x 40mm 4-Blade Propeller (on web they say 8) 1 x 3.7V 600mah Battery 1 x USB charging cable 1 x tool for easy taking of the propeller 1 x user guide, but here is online copy - LINK What else I Need to Fly? A radio compatible with Frsky, Spektrum or Futaba - I use the Taranis (frsky)- https://goo.gl/eVLte4 FPV goggles or screen with a 5.8GHz receiver - I use the Skyzone goggles - http://goo.gl/qAoHNo
