Review of AKK 600mW FPV VTX & 600TVL 2.8MM HQ Picture Sony CCD Camera COMBO KC02

mlilasic
Mar 31, 2017
1 min read

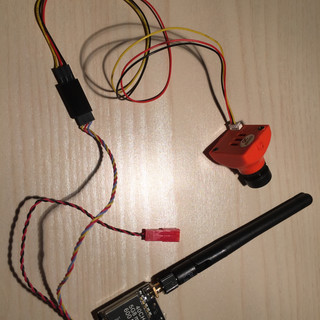

AKK 600mW FPV Transmitter with 600TVL 2.8MM 120 Degree High Picture Quality Sony CCD Camera for FPV Multicopter KC02

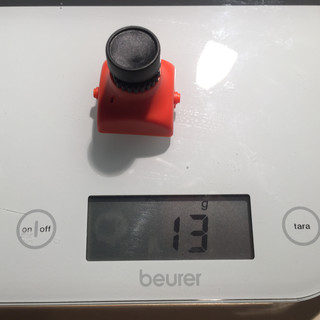

Specifications of Camera: CCD: 1/3” Sony SUPER HAD II CCD Pixel: NTSC: 768(H)×494(V) TV System: NTSC Resolution: 650TVL(b/w), 600tvl(color) Synchronization : internal synchronize Shutter Speed: (CCD IRIS) NTSC: 1/60~1/100000 sec Noise: > 60 (AGC OFF) Video Out: 75ohm, synchronize Min. Illumination: 0.01Lux Auto Gain: Off/Low/Mid/High Back Light Compensation (BLC): Off /Back light compensation/ Strong light suppression Private shading (PRIVACY): 1~8 private shading area Motion Detection (MD): On/ Off (Multi level sensitivity settable) Auto White Balance: Manual / Auto / Auto track Mirror: Horizontal Mirror optional Negative: Positive / Negative optional Color to B&W: Auto DNR: 2DNR; WDR: D-WDR Day / Night Shift: Auto/ Color/ B&W Menu (OSD): English menu White Dot Repair: Support Image Adjustment: Support Camera Title: Support Power Requirement: DC5V~22V Working Humidity: 20~80% Storage Temperature: -40 C ~ +60 C Storage Humidity: 20~95% Dimensions(mm): 25X25(W*L) Power Consumption: 70mA Weight: 13g

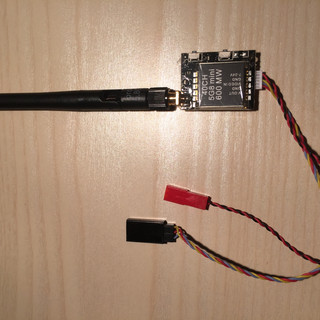

Specification of Transmitter: Video Format: NTSC Output Impedance: 50 Ohm Transmitter frequency range: 5645-5945MHz Antenna connector: RP-SMA connector Supply current: 280 mA Operating Temperature -10 +85 C Video Band Width: 0-8.0 MHz Audio carrier Frequency: 6.5 MHz Video Input Level: 0.8,1.0,1.2 Vp-p Video Input Impedance: 75 Ohm Audio Input Level: 0.5 ,2.0 Vp-p Audio Input Impedance: 10K Ohm Weight: 8g
