New Frsky Ultra Light 1.5g XM+ Micro D16 SBUS Full Range 16CH Receiver
- mlilasic
- Feb 3, 2017
- 1 min read

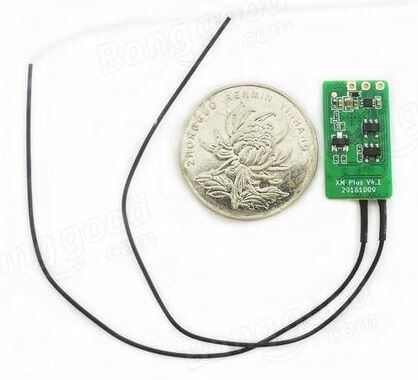

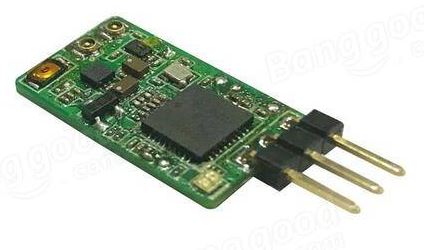

New Frsky Ultra Light 1.5g XM+ Micro D16 SBUS Full Range 16CH Receiver This insanely tiny 2.4GHz diversity receiver available from FrSky is the next big thing in miniaturization of racing craft. Weighing ultra low 1.5g, this receiver is perfect for those race and freestyle pilots who are looking to lower their AUW or to achieve cleaner build. XM+ is rated sa “full range”, so identical to your XSR, X4R and D4R setups.

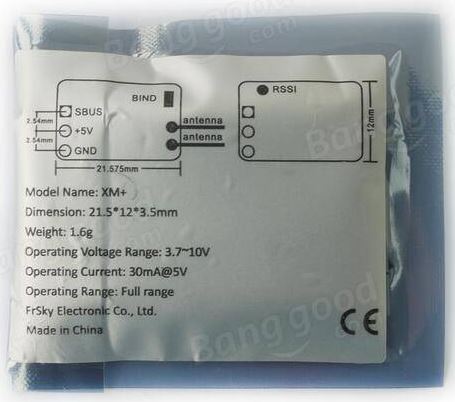

Specification:
Weight: 1.5g
Dimension: 21.5*12*3.5mm(L x W x H)
Number of Channels: Up to 16CH from SBUS (1-15ch for PWM,16ch RSSI for FC)
Operating Voltage Range: 3.7~10V
Operating Current: 30mA @5V
Operating Range: Full range
With RSSI output on board: Analog 0~3.3V
Firmware Upgradeable
Compatibility: FrSky D16 mode
Whats in the package:

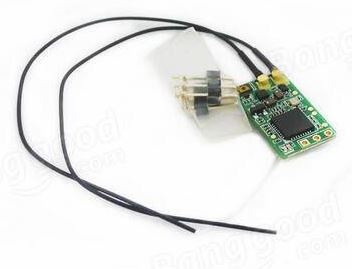

XM+ Receiver
Manual
few pin headers for soldering if needed
PROS:
16CH SBUS and RSSI output
full range
ultra small size
ultra light
CONS:
no telemetry (due the small size electronics needed for telemetry cant fit on this board - size had to be like XSR receiver)
Grab yours XM+ HERE I plan build with this XM+ so subscribe, to be continued...
